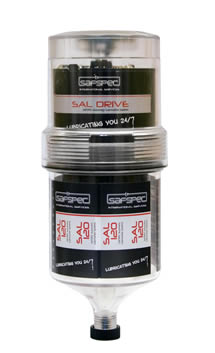

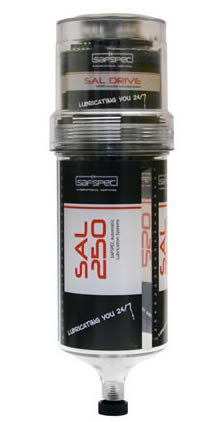

SAL L250 and SAL M120 is the perfect lubricator for different discharge volume requirements and periods.  The users can select the discharge period (1, 2, 6 or 12 months) and the exact lubricant dosage required by the equipment, and easily set and re-set the lubricator on site.  The operating status is constantly displayed via the LED function lights.

Function

SAL L250 and M120 consists of an exchange set (filled LC-unit and battery pack) and an electromechanical drive unit with transparent cover.  The drive unit can build up pressure to 5 bar/75 psi.  Its operation is fully automatic, temperature dependent and precise.  The drive can be re-used and is therefore environmentally friendly.  The LC-units (Lubrication Cartridges) are made of transparent plastic and permit constant visual control of the amount of lubricant discharge.

Characteristics

• Fully automatic, temperature independent and precise

• Transparent plastic housing

• Electromechanical drive (battery operated)

• Re-usable drive is environmentally friendly

• 2 different volumes available (120cc and 250cc)

• Exchange on site possible

• 4 discharge settings (1, 3, 6, 12 months) possible

• Pressure build-up to 5 bar/75psi max

• Ambient temperature from -10 to +20 °C/14 to +122 °F

• Protected against dust and splash water, non-corrosive


Applications

• Roller- and sliding bearings

• Chains

• Open gears

• Guides

• For applications that require precise lubricant metering even where the ambient temperature is subject to significant fluctuations.

Advantages

• Improve safety and lower costs than manual lubrication

• Controlled and permanent lubrications

• No external power supply necessary

• Works independent of temperature and vibration

• LED signals operating conditions

• Re-usable drive unit

• Transparent housing permits visual control of remaining lubricant

• Non-corrosive transparent plastic housing
• Pressure build-up to 5 bar/75 psi allows use of flexible tube extensions up
  to 3 m
