Low Levels:  Excessive wear, overheating, breakdowns, downtime…etc, etc.
High Levels:  Increased resistance, higher oil temperatures, foaming, seal shrinkage and then seal leakage…etc, etc.

1. TOM maintenance constant and accurate oil levels, continuously.
2. TOM automatically compensates for oil leakage or consumption, Labour free!
3. TOM has a transparent reservoir so oil level is easy to see.
4. TOM enables simple comparison of oil consumption between similar machines and provides early warning of impending maintenance.
5. TOM provides easy access for periodical cleaning, if required.  The lower reservoir enables inspection for potential contamination of oil/water/impurities.
6. TOM allows for the oil reservoir to be isolated in order to clean it.
7. TOM allows the oil level in the reservoir to be topped up without shutting down the machine.

Applications

• RIGHT TIME and VOLUME:  Oil topped up only when needed.
• ZERO LOSS:  Eliminates equipment wear and failure due to low or improper oil supply.
• ONCE ONLY:  No ongoing adjustments after installation.
• TIMELY:  TOM provides constant and accurate Oil Level Monitoring.
• SAFETY:  TOM simplifies “Preventative Maintenance” inspections!
• RELIABLE:  TOM utilizes only gravity and atmospheric pressure.
• CHEAP TO RUN:  No electric or battery power required.
• SIMPLE:  No further manual adjustments required once installed.
• FAST:  Rapid inspection for contamination by Oil/Water/Impurities.

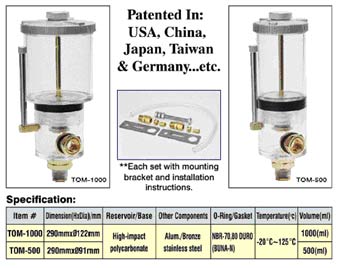

Specifications

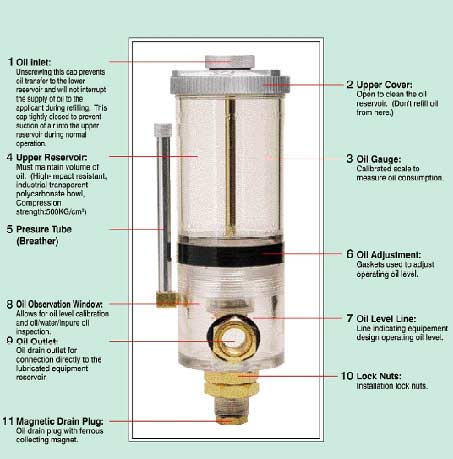

TOM Diagram
